Take the payment for a sale through the Payment Coordinator. It is Lobyco’s single entry point for paying with bonus, a card, a loyalty subscription, Apple Pay or Google Pay. The POS creates the payment, the customer confirms it in the app, and the POS captures it. A bonus payment can skip the confirmation.

Before you start

The checkout is registered as a payment location. See Setting up a payment location.
The customer is checked in at it, so the POS has their memberId. See Registering at POS.
Server-to-server authentication must be working. See API authentication.

The flow

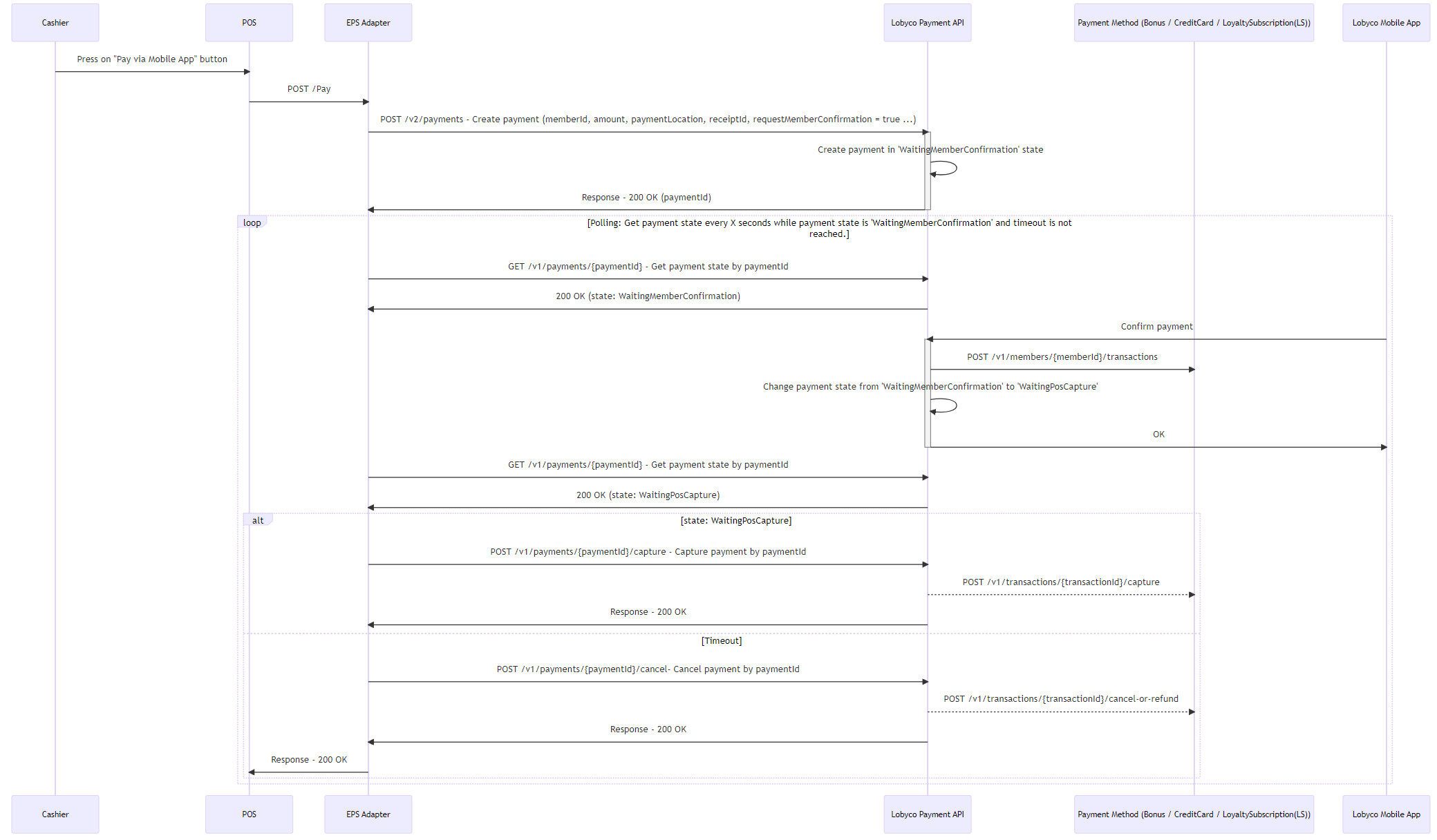

With confirmation, the customer approves the payment in the app before the POS captures it. This is the flow for card, wallet and subscription payments, and for bonus when you want the customer to confirm. Without confirmation, a payment taken entirely from the customer’s bonus balance is created and captured in two calls.

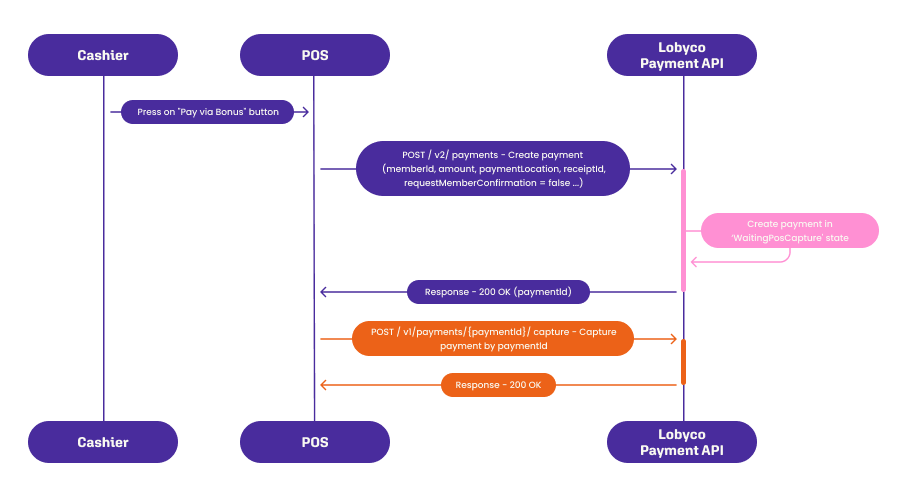

Sequence diagram: the cashier chooses pay with bonus, the POS creates the payment without member confirmation and captures it straight away

Without confirmation: a bonus payment the POS creates and captures in two calls

Create the payment

POST /v2/paymentsThe request carries:

type, set to POS.
paymentLocation, the checkout.
receiptId, the sale.
memberId, from check-in.
amount, what the customer pays.
operationId, unique per attempt. Reuse it only when retrying the same attempt, so a retry cannot create a second payment.
requestMemberConfirmation, true or false, explained below.

Lobyco answers with the paymentId.Set requestMemberConfirmation: true to let the customer choose the payment method and confirm in the app. The payment starts in the WaitingMemberConfirmation state. Set it to false only for a payment taken entirely from the customer’s bonus balance. Lobyco then confirms it without the customer, and the payment starts in WaitingPosCapture. The customer must confirm a card or wallet payment.

Wait for the customer to confirm

GET /v2/payments/{paymentId}Poll the payment every few seconds while its state is WaitingMemberConfirmation. The customer sees the amount in the app, picks a method and confirms. The state then changes to WaitingPosCapture. Give the customer a fixed time to confirm, and cancel the payment when it runs out, so the till is not left waiting.

Capture the payment

POST /v2/payments/{paymentId}/captureCapture once the state is WaitingPosCapture. Send the amount and an operationId. A partial capture is allowed, and Lobyco cancels the remainder. The state becomes Captured, and the money moves.

[Optional] Cancel the payment

POST /v1/payments/{paymentId}/cancelCancel a payment that has not been captured, because the customer did not confirm in time or the sale was abandoned. The state becomes Canceled.

[Optional] Refund the payment

POST /v1/payments/{paymentId}/refundRefund a payment that has been captured, for example on a return. A refund is a separate transaction that references the original. It reports WaitingRefund while in progress and Refunded when done.

Payment states

State	Meaning	What the POS can do
`WaitingMemberConfirmation`	The customer has not yet confirmed in the app	Keep polling, or cancel
`WaitingPosCapture`	The customer has confirmed, or no confirmation was needed	Capture, or cancel
`Captured`	The money has moved	Refund
`Canceled`	The payment ended without a capture	Nothing. Create a new payment if the sale continues
`WaitingRefund`	A refund is in progress	Wait
`Refunded`	The refund has completed	Nothing

Payment methods and providers

For a POS payment the customer picks the method in the app when confirming. The methods are bonus, a saved or new card, a loyalty subscription, Apple Pay and Google Pay. Which of them a customer sees depends on what is enabled for your programme. Card handling sits behind the Payment Card Provider, Lobyco’s generic card service. The acquirer can change without a change to your integration. Worldline, Rapyd and Moneris are supported today, and Lobyco can add providers. It covers saving a card against the customer’s account for reuse, and paying without storing the card. It also handles Apple Pay and Google Pay, loyalty subscription top-ups, and a web interface for managing saved cards where one is needed. The same service takes e-commerce and scan-and-pay payments. Those use type: Ecommerce or type: ScanAndPay with a storeId instead of a paymentLocation, and otherwise follow the same states.

Failure and edge cases

A finished payment is one in the Captured state. Admin users see every payment in the Lobyco Admin Portal, and can capture, cancel or refund one by hand when the POS could not.

A call times out. Retry it with the same operationId. Lobyco recognises the retry and does not create or capture twice.
The customer never confirms. Cancel the payment when your timeout runs out, so the app stops showing it, then take the payment another way.
Cancel and refund are not interchangeable. Cancel works only before capture, refund only after it. The call for the wrong state fails.
A captured payment does not record the sale. Send the finished sale to the Purchase API as well, as described in Transaction data.

API reference

Endpoint documentation: Payment Coordinator.

Registering at POS — the check-in that supplies the memberId and the amount the customer can pay from their account.
Transaction data — the call that records the sale. Capturing a payment does not.
