Multi-tenant authentication using client credentials flow

​

Before you start

• Ask Lobyco for the authentication configuration of the environment. Lobyco creates a multi-tenant app on its side and sends you three values:
  • lobyco_app_id, the application id of the Lobyco multi-tenant app.
  • lobyco_app_name, its display name.
  • lobyco_app_uri, its application id URI, which becomes the token scope.
• You must be a Global Administrator, an Application Administrator or a Cloud Application Administrator in your tenant, because application permissions take admin consent.

​

The procedure

1

​

Import the Lobyco app into your directory

Create a service principal in your tenant that represents the Lobyco multi-tenant app. Until it exists, the Lobyco app and its roles are not visible in your tenant. Run this in PowerShell:

New-AzureADServicePrincipal -AppId <lobyco_app_id>

The service principal then appears under Enterprise applications in the Azure portal, with the name in lobyco_app_name.

2

​

Register the client app

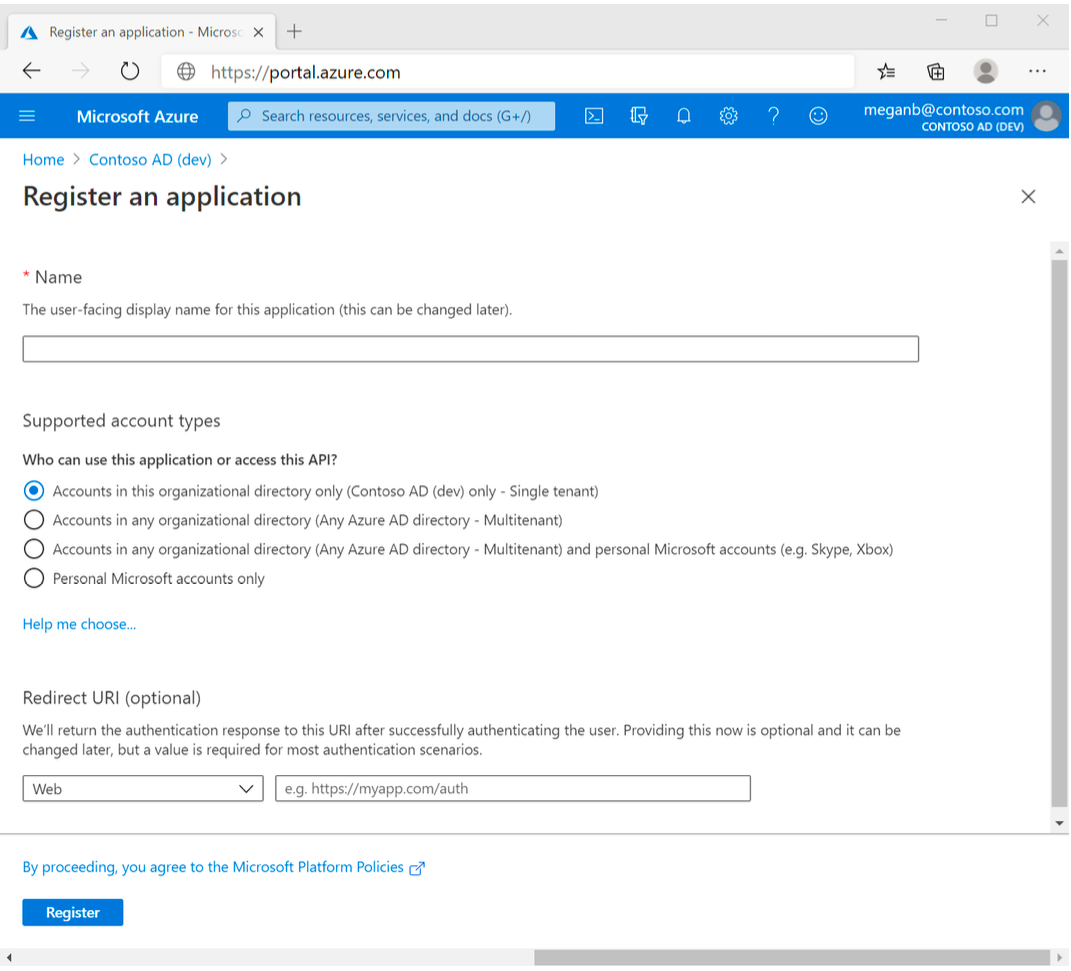

Register the single-tenant app that represents your service. Go to App registrations in the Azure portal and choose New registration.Register an application: single tenant, and no redirect URIFill in:

• Name: a name that says what it is and which environment it serves, such as lobyco-api-client-app followed by the environment name.
• Supported account types: Accounts in this organizational directory only.
• Redirect URI: leave it empty. The client credentials flow does not use one.

Choose Register. On the app’s Overview page, copy Application (client) ID and keep it as client_app_id. The token request uses it.

3

​

Add a secret or a certificate

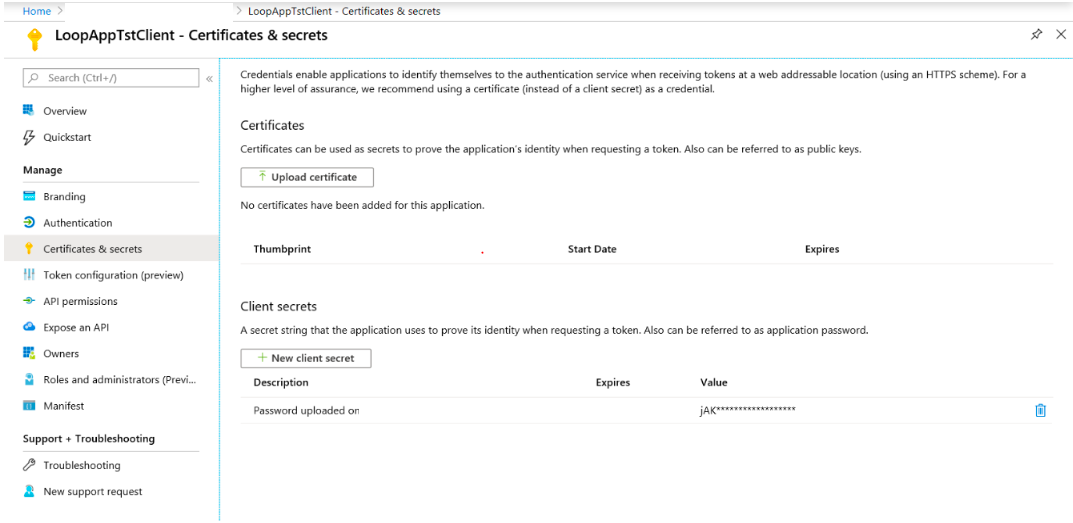

A confidential client authenticates as itself, without a user, so it carries a credential of its own. Under Certificates & secrets, add a client secret or upload a certificate.A client secret added to the client appCopy the secret value as soon as it is created and keep it as client_app_secret. The portal shows it only once.

4

​

Grant the application permissions

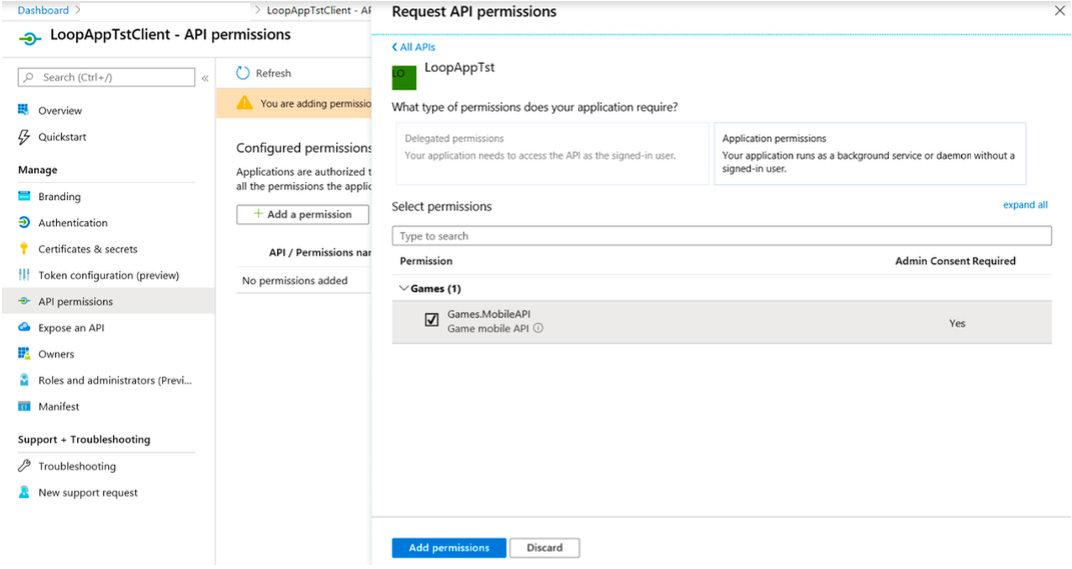

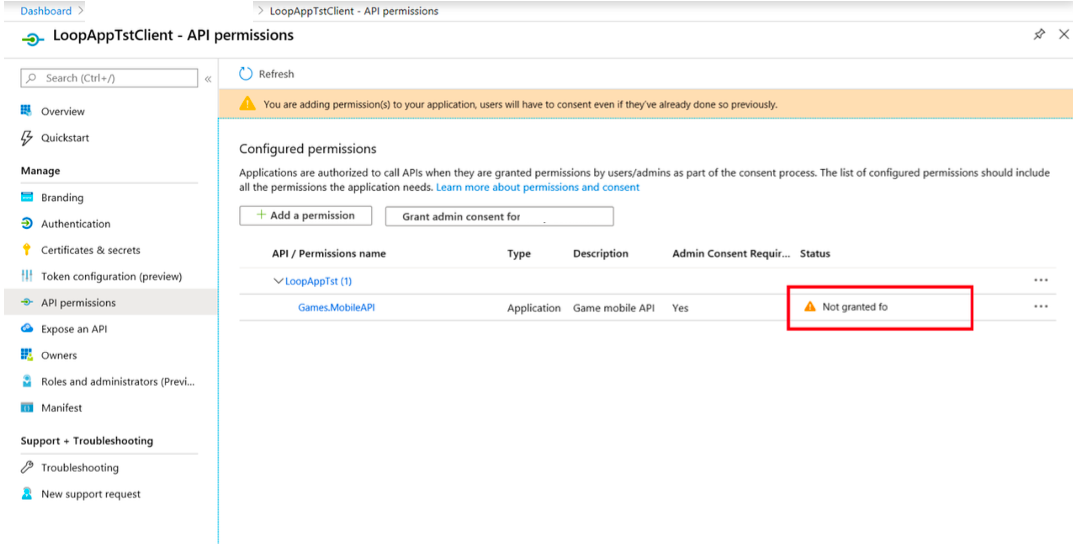

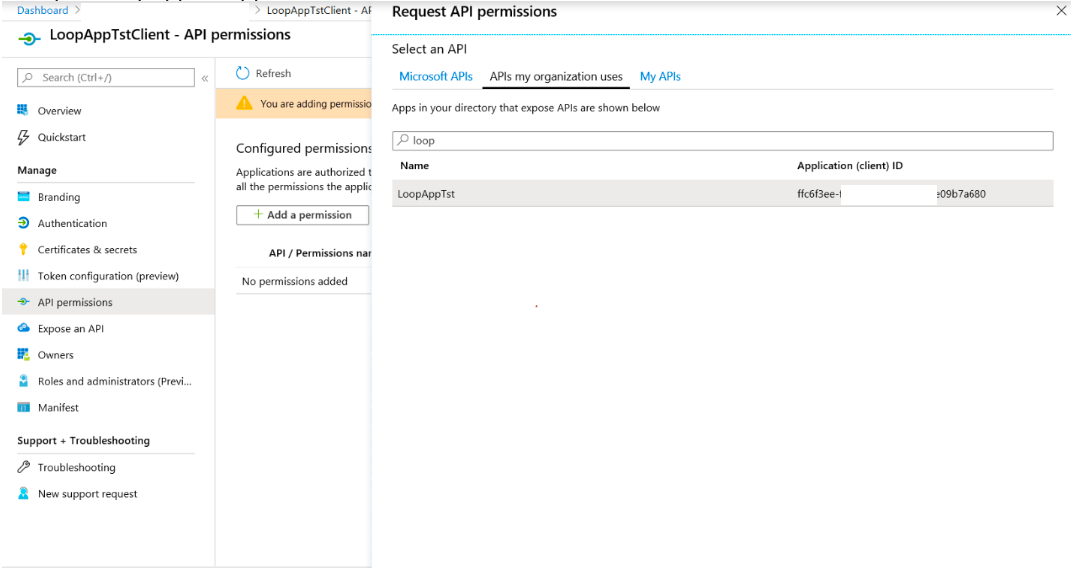

Under API permissions, choose Add a permission and open the APIs my organization uses tab. Search for the Lobyco app by lobyco_app_name or lobyco_app_id.Find the Lobyco app under APIs my organization uses. The screenshots show a test app, LoopAppTstChoose Application permissions and tick the roles your service needs. The test app in the screenshots exposes one, Games.MobileAPI.Select the application permissions: these are the Lobyco roles the client app will carryChoose Add permissions, then Grant admin consent for your directory. Application permissions always take admin consent. Until it is granted, the status column reads Not granted.Before consent, the permission is listed as not granted

5

​

Set the token version in the manifest

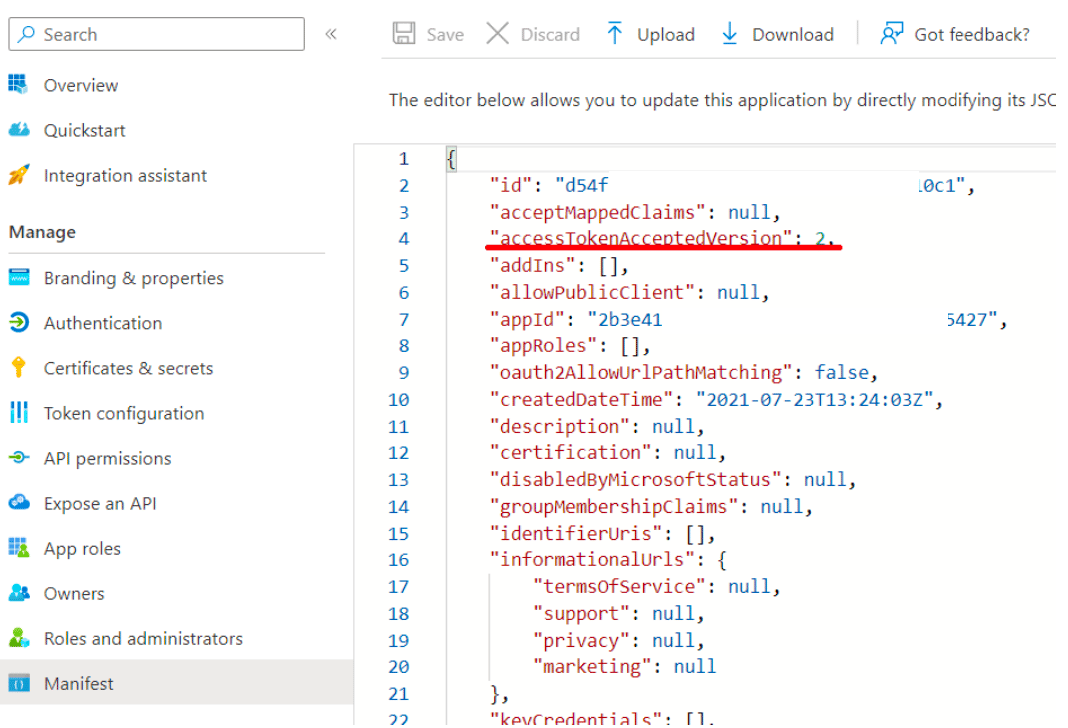

Open Manifest, set accessTokenAcceptedVersion to 2, and save.accessTokenAcceptedVersion set to 2 in the manifest

6

​

Request a token and check its roles

Request the token as described on Lobyco tenant authentication using client credentials flow. The request is the same; use your own tenant id as client_tenant_id, and the client_app_id and client_app_secret you recorded.Decode the token at jwt.ms and check that the roles claim lists every application permission you granted. A token from this setup looks like this:

{
  "aud": "{lobyco_app_id}",
  "iss": "https://login.microsoftonline.com/{client_tenant_id}/v2.0",
  "iat": 1580306045,
  "nbf": 1580306045,
  "exp": 1580309945,
  "aio": "{aio}",
  "azp": "{client_app_id}",
  "azpacr": "1",
  "oid": "{client_app_object_id}",
  "roles": [
    "{selected_app_role}"
  ],
  "sub": "{client_app_object_id}",
  "tid": "{client_tenant_id}",
  "uti": "{uti}",
  "ver": "2.0"
}

aud is the Lobyco app, iss is your tenant, and roles carries the permissions. With this token, the first call to a Lobyco API returns the normal response, not 401 Unauthorized.

​
